G100 5G Data module 5G 數據模組


G100 5G Data module 5G 數據模組

Axpro 5G Data module 是一個5G模組,針對IoT / eMBB的應用進行了優化。採用3GPP Release 15,它支持5G NSA和SA模式,並採用M.2尺寸設計,可以輕鬆地嵌入客戶的應用程序中。

Axpro 5G Data module 的全球版本幾乎支援了全球所有主要通訊商,並解支持高通® ; IZat™定位技術Gen8C Lite(GPS,GLONASS,北斗和伽利略)。集成的GNSS接收器簡化了產品設計,提供了更快,更準確和更可靠的定位功能。

提供使用於Windows 7/8 / 8.1 / 10,Linux和Android操作系統的USB和PCIe驅動程式,將模塊的適用性擴展到了廣泛的M2M和IoT應用程序如工業路由器,家庭網關,CPE,工業筆記本電腦,消費類筆記本電腦,工業PDA,視頻監控和數字標牌等。


  • 車隊管理影像即時處理
  • 自駕車
  • 老人健康追蹤
  • 高解析AR VR



5G時代來臨 萬物互聯 通訊躍進世界翻轉中

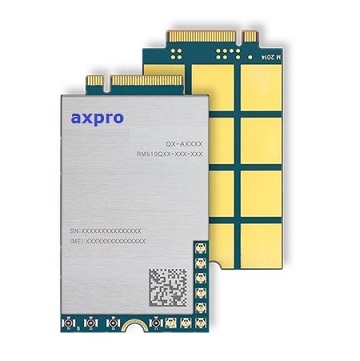

AXPRO G100 5G Data module is a 5G module that is specially optimized for IoT/eMBB applications. Adopting 3GPP Release 15, it supports both 5G NSA and SA modes. Designed in M.2 form factor, G100 can be easily embedded in customers’ applications.

The global version G100 nearly covers all of the main operators worldwide. The module supports QualcommR; IZat? location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo). The integrated GNSS receiver greatly simplifies the product design, and also provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionality (USB and PCIe drivers for operating systems Windows 7/8/8.1/10, Linux and Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, CPE, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

5G Data Module
Key Features
---5G/4G/3G multi-mode module with M.2 form factor, optimized for IoT and eMBB applications
---Worldwide 5G and LTE-A coverage
---Both NSA and SA modes supported
---Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
